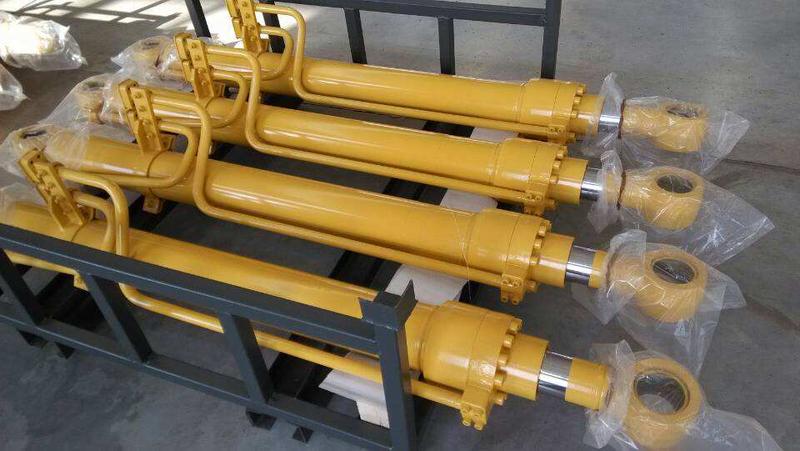

济宁山牛液压有限公司生产的各种型号的挖掘机油缸，主要面向挖掘机配件市场。适配日本小松挖掘机、日立建机挖掘机、神钢挖掘机，美国卡特比勒挖掘机、凯斯挖掘机，沃尔沃挖掘机，韩国（原大宇）斗山挖掘机，现代挖掘机，国产品牌：三一挖掘机、徐工挖掘机、柳工挖掘机等等。

   本公司生产的挖掘机系列液压油缸保证质量，质量由企业内部控制，采用高于国家标准的企业标准。从每个配件加工到总成组装，每道工序都执行严格的检验标准。产品的合格率达到100%才可以入库。

   液压油缸的从选择材料到加工做个简单的介绍：液压油缸缸筒采用高强度合金钢材27siMn，经调质处理，洛氏硬度在HRC32-36之间，布氏硬度在HB301-340之间，抗拉强度980MPa。油缸缸筒内壁经镗孔滚压或珩磨，表面粗糙度小于0.04微米，达到镜面效果，保证了与液压油封之间密切贴合，达到良好的密封效果，同时活塞运动中摩擦系数也非常小，延长了液压油缸整体的使用寿命。活塞杆采用45号钢或40Cr钢，调质处理，洛氏硬度在HRC34-38之间，布氏硬度在HB320-360之间，抗拉强度980MPa。保证活塞杆有足够的强度。活塞杆表面经过粗车、精车、磨削、表面淬火、电镀硬铬、抛光等多道工序加工。表面粗糙度也达到镜面效果，保证良好的密封效果。活塞杆经表面淬火加电镀硬铬后，表面硬度达到洛氏硬度在HRC42-55之间，防止了因外来物体的碰撞、摩擦引起活塞杆损坏。活塞杆耳环采用45号钢锻造毛坯再经过钻孔、镗孔加工而成，强度和密实度都较高，保证有足够的抗拉强度。挖掘机液压油缸的运动速度比较快，所以在油缸的前端和尾端都有缓冲装置，防止液压油缸在运行时产生冲击，保护了油缸和挖掘机的大臂，延长了使用寿命，同时也可以使挖掘机的运动更平滑柔和。

   济宁山牛液压油缸公司除了现有的挖掘机油缸外，也可以根据客户的要求或图纸、样品定制产品。保证质量的同时，以较低的价格和广大客户建立长期稳定的合作关系。

Jining Shanniu Hydraulic Co., Ltd. produces various models of excavator oil cylinders, mainly targeting the excavator parts market. Suitable for Japanese Komatsu excavators, Hitachi Construction Machinery excavators, Shengang excavators, American Caterpillar excavators, Case excavators, Volvo excavators, Korean (formerly Daewoo) Doosan excavators, Hyundai excavators, domestic brands such as Sany excavators, XCMG excavators, LiuGong excavators, etc.

The hydraulic cylinders of the excavator series produced by our company ensure quality, which is controlled internally by the enterprise and adopts enterprise standards higher than national standards. From the processing of each component to the assembly of the whole assembly, strict inspection standards are implemented in every process. The qualified rate of the product must reach 100% before it can be stored.

A brief introduction to the selection and processing of hydraulic cylinders: The cylinder barrel of the hydraulic cylinder is made of high-strength alloy steel 27siMn, which has undergone quenching and tempering treatment. The Rockwell hardness is between HRC32-36, the Brinell hardness is between HB301-340, and the tensile strength is 980MPa. The inner wall of the oil cylinder barrel is drilled, rolled or honed, with a surface roughness of less than 0.04 microns, achieving a mirror effect and ensuring a close fit with the hydraulic oil seal, achieving good sealing effect. At the same time, the friction coefficient during piston movement is also very small, extending the overall service life of the hydraulic cylinder. The piston rod is made of 45 steel or 40Cr steel, quenched and tempered, with a Rockwell hardness between HRC34-38 and a Brinell hardness between HB320-360, and a tensile strength of 980MPa. Ensure that the piston rod has sufficient strength. The surface of the piston rod undergoes multiple processes such as rough turning, precision turning, grinding, surface quenching, electroplating with hard chromium, and polishing. The surface roughness also achieves a mirror effect, ensuring good sealing effect. After surface quenching and electroplating with hard chromium, the surface hardness of the piston rod reaches Rockwell hardness between HRC42-55, preventing damage to the piston rod caused by collision and friction with foreign objects. The piston rod earrings are made of forged 45 steel blanks and processed through drilling and boring, with high strength and compactness, ensuring sufficient tensile strength. The movement speed of excavator hydraulic cylinders is relatively fast, so there are buffer devices at the front and rear ends of the cylinders to prevent impact during operation, protect the cylinders and the excavator's boom, extend their service life, and also make the excavator's movement smoother and softer.

Jining Shanniu Hydraulic Cylinder Company can also customize products according to customer requirements, drawings, and samples, in addition to the existing excavator cylinders. While ensuring quality, establish long-term stable cooperative relationships with customers at lower prices
