自卸车液压缸简介

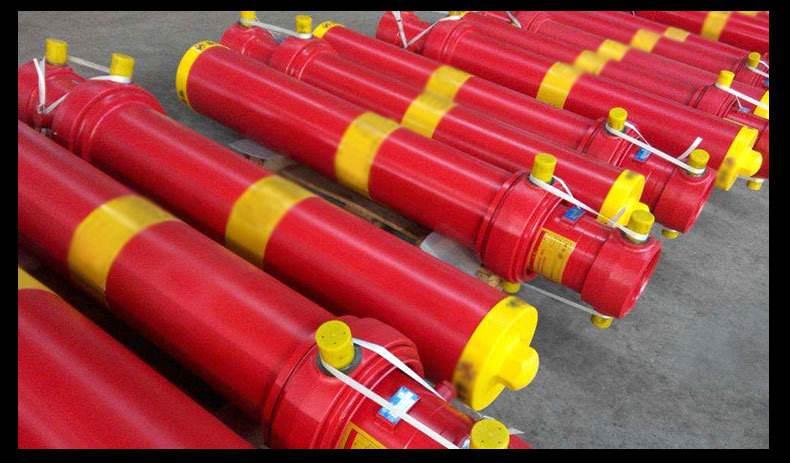

自卸车液压缸是翻斗式自动卸下物料的液压驱动部件，前置式液压缸是向后翻车斗的自卸车，也有捌液压缸放置在车斗中间的，还有向一侧翻斗的自卸车。前置液压缸总成比较长，采用多节液压缸缸筒套装在一起，起升时从大的到小的逐节伸出，行程比较长。中置液压缸比较短，行程也比较短。以下把各种液压缸的常用的型号举例说明。

A 自卸车前置液压缸包括FC型和FE型

FC型自卸车油缸常用型号举例：

FC149-3-04270-K343

FC149-4-04620-K343

FC169-4-05180-K343

FC169-4-05460-K343

FC191-4-05460-K343

FC191-5-05780-K343

FC191-5-06180-K343

FC191-5-07130-K343

FC191-5-09030-K486

FC214-5-09030-K486

FC型自卸车油缸常用型号举例：

FE129-3-03880-K1609

FE149-3-03880-K1644

FE169-4-04620-K1479

FE169-4-05180-K1604

FE191-5-06180-K1527

可根据客户提供的图纸或要求定制

B 自卸车中置液压缸

T140/80-800   配套放大架和连杆

T160/90-850   配套放大架和连杆

T180/100-860   配套放大架和连杆

T200/120-880   配套放大架和连杆

T220/120-910   配套放大架和连杆

C 自卸车侧翻车斗液压缸

3TG-E130*750

3TG-E130*900

5TG-E130*800

4TG-E150*800

5TG-E150*800

Introduction to dump truck hydraulic cylinder

The hydraulic cylinder of a dump truck is a hydraulic driving component for automatic unloading of materials in a tipping bucket style. The front mounted hydraulic cylinder is used for dump trucks with a rear tipping bucket, and there are also eight hydraulic cylinders placed in the middle of the bucket, as well as dump trucks with a side tipping bucket. The front hydraulic cylinder assembly is relatively long, using multiple sections of hydraulic cylinder barrels assembled together. When lifting, it extends section by section from large to small, with a relatively long stroke. The central hydraulic cylinder is relatively short and has a shorter stroke. Here are examples of commonly used models of various hydraulic cylinders.

A dump truck front hydraulic cylinder includes FC type and FE type

Examples of common models of FC dump truck oil cylinders:

FC149-3-04270-K343

FC149-4-04620-K343

FC169-4-05180-K343

FC169-4-05460-K343

FC191-4-05460-K343

FC191-5-05780-K343

FC191-5-06180-K343

FC191-5-07130-K343

FC191-5-09030-K486

FC214-5-09030-K486

Examples of common models of FC dump truck oil cylinders:

FE129-3-03880-K1609

FE149-3-03880-K1644

FE169-4-04620-K1479

FE169-4-05180-K1604

FE191-5-06180-K1527

Customized according to customer provided drawings or requirements

B dump truck central hydraulic cylinder

T140/80-800    Supporting amplification frame and connecting rod

T160/90-850    Supporting amplification frame and connecting rod

T180/100-860    Supporting amplification frame and connecting rod

T200/120-880    Supporting amplification frame and connecting rod

T220/120-910    Supporting amplification frame and connecting rod

C dump truck side tipping bucket hydraulic cylinder

3TG-E130*750

3TG-E130*900

5TG-E130*800

4TG-E150*800

5TG-E150*800
